V1210 PLC với màn hình Graphic HMI và I/O tích hợp , Màn hình hiển thị tích hợp PLC 2 trong 1, Unitronics Việt Nam

Nhà cung cấp: ANS VietNam

Hãng sản xuất: Unitronics VietNam

Liên hệ tư vấn

Ms. Liên

lien.ans@ansvietnam.com

0902937088

lientran87

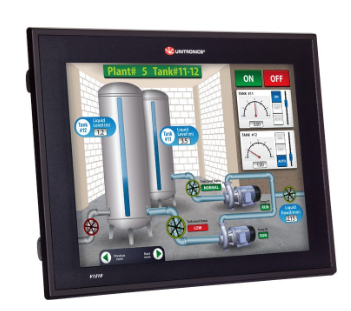

Vision1210™- PLC Controller With High Resolution HMI Touchscreen

Advanced PLC controller from the back- big & high resolution color 12.1″  touchscreen. Snap-in I/Os for an All-in-One controller; expands up to 1000 I/Os.

PLC

  • I/O options include high-speed, temperature & weight measurement
  • Auto-tune PID, up to 24 independent loops
  • Recipe programs and data logging via Data Tables
  • Micro SD card – log, backup, clone & more
  • Date & time-based control

HMI

  • Up to 1024 user-designed screens
  • 1500 images per application
  • HMI graphs – color-code Trends
  • Built-in alarm screens
  • Text String Library – easy localization
  • Memory and communication monitoring  via HMI – No PC needed

Communications

  • TCP/IP via Ethernet
  • Web server: Use built-in HTML pages or design complex pages to view and edit PLC data via the Internet
  • Send e-mail function
  • SMS messaging
  • GPRS/GSM
  • Remote Access utilities
  • MODBUS protocol support
  • BACnet, M-bus – via 3rd-party converter
  • CANbus: CANopen, UniCAN, SAE J1939 and more
  • DF1 Slave
  • SNMP agent V1
  • FB Protocol Utility: enables serial or TCP/IP communications with 3rd-party device; barcode readers, frequency converters, etc
  • Ports: supplied with 2 isolated RS232/RS485 ,1 CANbus, 1 USB programming port; 1 port may be added for serial/Ethernet
