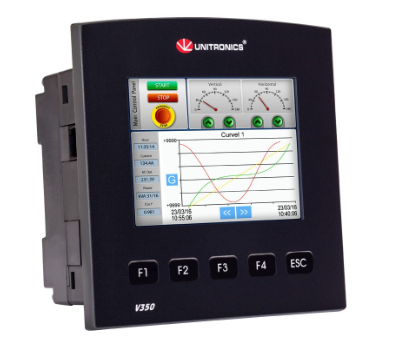

Vision350™- Programmable Logic Controller + HMI (PLC+HMI)
Advanced programmable logic controller integrated with a 3.5″ color touchscreen. Includes an onboard I/O configurations; expands up to 512 I/Os.
PLC
- I/O options include high-speed, temperature & weight measurement
- Auto-tune PID, up to 24 independent loops
- Recipe programs and data logging via Data Tables
- Micro SD card – log, backup, clone & more
- Date & time-based control
HMI
- 1024 user-designed screens
- 500 images per application
- HMI graphs— color-code Trends
- Built-in alarm screens
- Text String Library – easy localization
- Memory and communication monitoring via HMI – No PC needed
Communications
- TCP/IP via Ethernet
- Web server: Use built-in HTML pages or design complex pages to view and edit PLC data via the Internet
- Send e-mail function
- SMS messaging
- GPRS/GSM
- Remote Access utilities
- MODBUS protocol support
- BACnet, M-bus – via 3rd-party converter
- CANbus: CANopen, UniCAN, SAE J1939 and more
- DF1 Slave
- SNMP Agent V1
- FB Protocol Utility: enables serial or TCP/IP communications
- With 3rd-party device; barcode readers, frequency converters, etc
- Ports: supplied with1 RS232/RS485; 2 ports may be added: 1 Serial/Ethernet/Profibus and 1 CANbus
IOs: I/O options include digital, analog, high-speed, temperature & weight measurement. See tables below:
| V350-35-TR20 | 24VDC, 10 Digital Inputs, 2 Analog/Digital Inputs, 6 Relay Outputs, RS232/RS485, 2 high-speed npn Transistor Outputs |
| V350-35-TR6 | 24VDC, 6 Digital Inputs, 2 Digital/Analog (current/voltage) Inputs, 4 Analog (current), 6 Relay Outputs, RS232/485, 2 high-speed npn Transistor Outputs |
| V350-35-R34 | 24VDC, 20 Digital Inputs, 2 Analog/Digital Inputs, 12 Relay Outputs, RS232/RS485 |
| V350-35-TR34 | 24VDC, 17 Digital inputs, 3 HSC with up to 200kHz,2 Analog/ Digital inputs, 8 Relay outputs, 4 npn- HSO- 5Hz-200kHz ( 3 PTO),RS232/RS485. |
| V350-35-RA22 | 24VDC, 8 Digital Inputs, 2 Analog/Digital Inputs, 2 TC/PT/Digital Inputs, 8 Relay Outputs, 2 Analog Outputs, RS232/RS485 |
| V350-35-TRA22 | 24VDC, 5 Digital inputs, 1 Digital/ HSC, 2 Analog/ Digital inputs, 2 PT100/ Thermocouple or 4 Digital inputs, 4 Relay outputs, 4 npn- HSO- 5Hz-200kHz ( 2 PTO), 2 Analog outputs, RS232/RS485. |
| V350-35-T2 | 24VDC, 10 Digital Inputs, 2 Analog/Digital Inputs, 12 Transistor Outputs, RS232/RS485 |
| V350-35-T38 | 24VDC, 20 Digital Inputs, 2 Analog/Digital Inputs, 16 Transistor Outputs, RS232/RS485 |
| V350-35-TA24 | 24VDC, 8 Digital Inputs, 2 Analog/Digital Inputs, 2 TC/PT/Digital Inputs, 10 Transistor Outputs, 2 Analog Outputs, RS232/RS485 |
| V350-S-TA24 | 24VDC, 8 Digital Inputs, 2 Analog/Digital Inputs, 2 TC/PT/Digital Inputs, 10 Transistor Outputs, 2 Analog Outputs, RS232/RS485 Operating temperature -30⁰ to 60⁰ |
| V350-35-B1 | 24VDC, no on-board I/Os, can be connected to expansion modules, RS232/RS485 |
| V350-J-TR20 | Flat Front 24VDC, 10 Digital Inputs, 2 Analog/Digital Inputs, 6 Relay Outputs, RS232/RS485, 2 high-speed npn Transistor Outputs |
| V350-J-TR6 | Flat Front 24VDC, 6 Digital Inputs, 2 Digital/Analog (current/voltage) Inputs, 4 Analog (current), 6 Relay Outputs, RS232/485, 2 high-speed npn Transistor Outputs |
| V350-J-R34 | Flat Front 24VDC, 20 Digital Inputs, 2 Analog/Digital Inputs, 12 Relay Outputs, RS232/RS485 |
| V350-J-TR34 | Flat Front 24VDC, 17 Digital inputs, 3 HSC with up to 200kHz,2 Analog/ Digital inputs, 8 Relay outputs, 4 npn- HSO- 5Hz-200kHz ( 3 PTO),RS232/RS485. |
| V350-J-RA22 | Flat Front 24VDC, 8 Digital Inputs, 2 Analog/Digital Inputs, 2 TC/PT/Digital Inputs, 8 Relay Outputs, 2 Analog Outputs, RS232/RS485 |
| V350-J-TRA22 | Flat Front 24VDC, 5 Digital inputs, 1 Digital/ HSC, 2 Analog/ Digital inputs, 2 PT100/ Thermocouple or 4 Digital inputs, 4 Relay outputs, 4 npn- HSO- 5Hz-200kHz ( 2 PTO), 2 Analog outputs, RS232/RS485. |
| V350-J-T2 | Flat Front 24VDC, 10 Digital Inputs, 2 Analog/Digital Inputs, 12 Transistor Outputs, RS232/RS485 |
| V350-J-T38 | Flat Front 24VDC, 20 Digital Inputs, 2 Analog/Digital Inputs, 16 Transistor Outputs, RS232/RS485 |
| V350-J-TA24 | Flat Front 24VDC, 8 Digital Inputs, 2 Analog/Digital Inputs, 2 TC/PT/Digital Inputs, 10 Transistor Outputs, 2 Analog Outputs, RS232/RS485 |
| V350-JS-TA24 | Flat Front spoorts extended temprature range 24VDC, 8 Digital Inputs, 2 Analog/Digital Inputs, 2 TC/PT/Digital Inputs, 10 Transistor Outputs, 2 Analog Outputs, RS232/RS485 |
| V350-J-B1 | Flat Front 24VDC, no on-board I/Os, can be connected to expansion modules, RS232/RS485 |
